200-Gallon UHP Fire Suppression Skid

High pressure. Serious capability. Built for the trucks you already have.

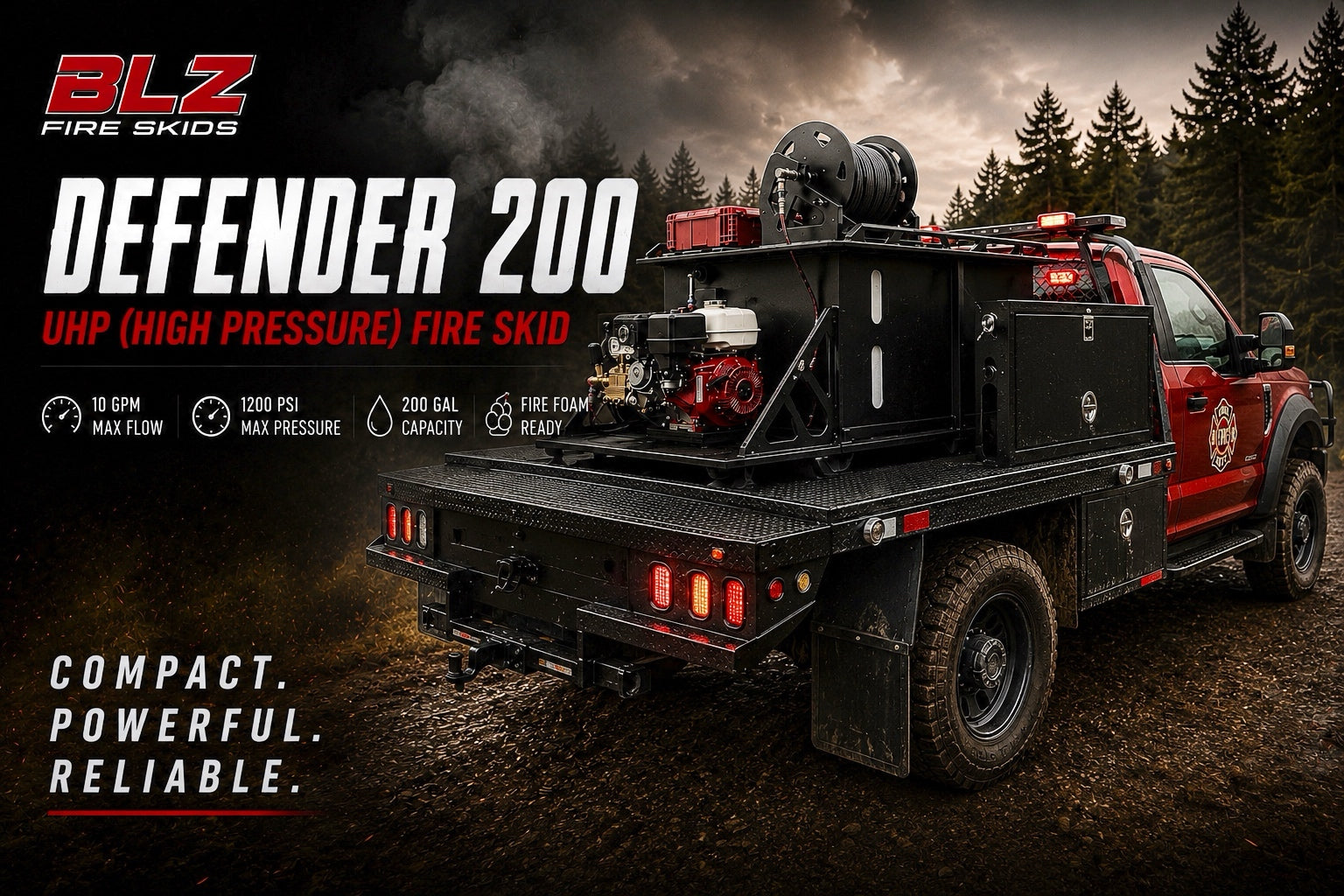

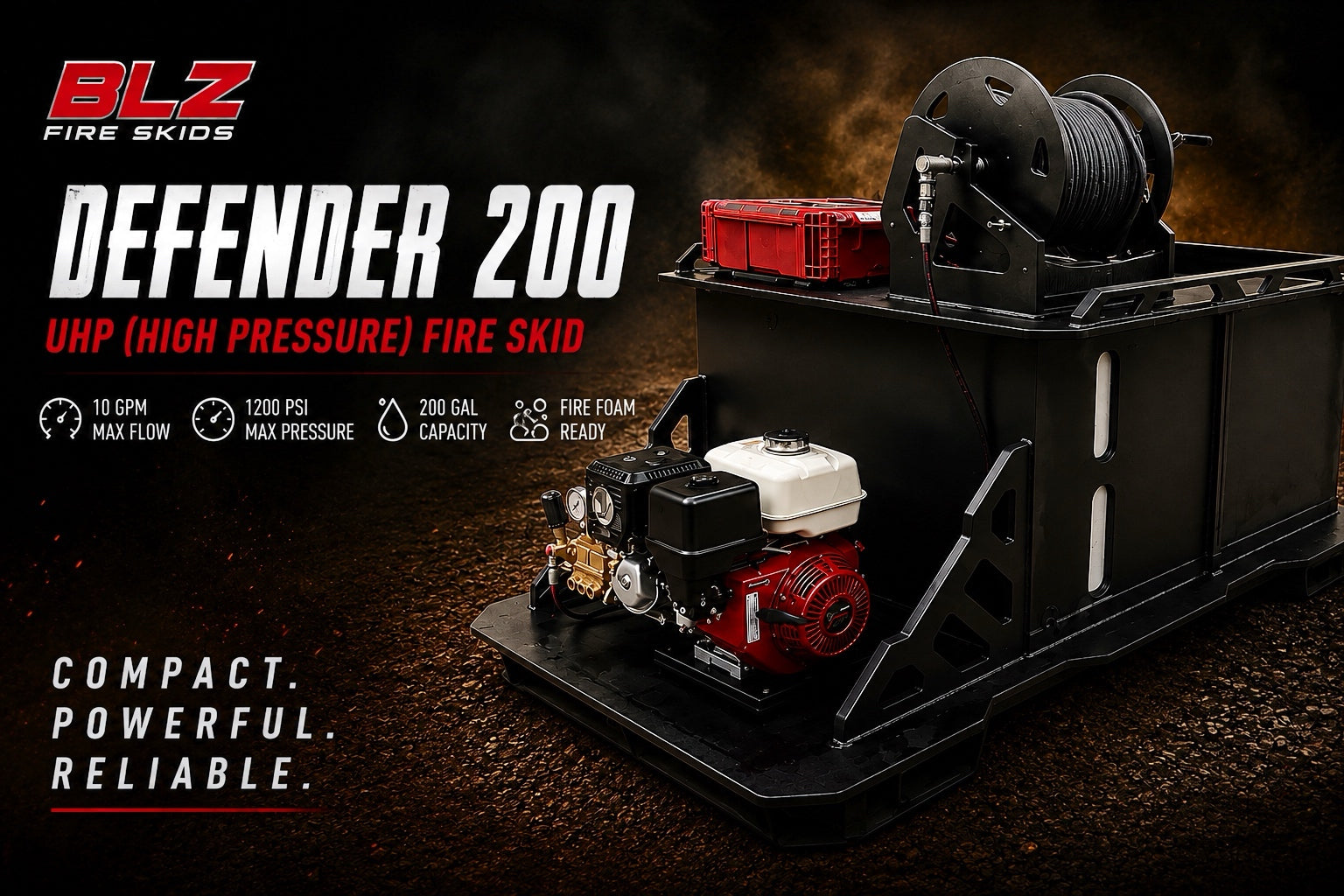

The BLZ Defender 200 is a compact, high-pressure fire suppression skid designed for brush trucks, wildland response vehicles, utility trucks, and rapid-response applications.

Built around a 200-gallon internally baffled water tank and a commercial-duty UHP pump system delivering up to 10 GPM at 1,200 PSI, it combines water capacity, pressure, foam capability, and reach in a slide-in package ready for immediate deployment.

Whether knocking down roadside grass fires, working brush lines, handling mop-up, protecting structures, or operating where a full-size engine can’t reach, the Defender 200 provides a maneuverable suppression platform without requiring a dedicated apparatus.

200 GALLONS. 1,200 PSI. READY TO FIGHT FIRE.

The Defender 200 uses Ultra High Pressure (UHP) to maximize efficiency from its onboard water supply. At up to 1,200 PSI and 10 GPM, it delivers effective suppression while conserving water through controlled application.

The result is a skid focused on mobility, efficiency, and operational reach within a compact 200-gallon system.

BLAZE BUSTER™ PROPORTIONAL FOAM METERING SYSTEM

The BLZ Blaze Buster™ is a proprietary proportional foam metering valve designed for adjustable foam delivery during operation.

The system allows the operator to increase, decrease, or shut off foam injection on demand without interrupting flow.

• Straight water: foam off
• Active foam application: dial in as needed
• Adjust in real time based on conditions

Foam concentrate remains separate until introduced, eliminating the need to pre-mix the full tank and giving full control over usage.

INTEGRATED 3-GALLON FOAM TANK

A 3-gallon foam concentrate tank is integrated into the main assembly, eliminating the need for external mounting and preserving skid space.

Combined with the Blaze Buster system, it provides onboard foam capability in a compact footprint.

FRONT LINE™ CUSTOM HIGH-PRESSURE HOSE REEL

Every Defender 200 includes the Front Line™ hose reel, manufactured in-house for fire-service use.

It features a stainless-steel internal manifold for corrosion resistance and high-pressure durability, and supports up to 200 feet of high-pressure hose.

By designing and building the reel internally, integration, layout, and performance are optimized specifically for the Defender platform rather than adapted from third-party components.

6-INCH RAPID-FILL TOWER

The Defender 200 includes a 6-inch fill tower for fast field refilling.

The large opening accommodates hydrant hoses and other water sources with minimal restriction. An integrated strainer helps block debris during fill operations.

A sealed, glove-friendly locking lid secures the system when not in use.

WATER LEVEL VISIBILITY

An integrated sight glass provides immediate visual water level indication without electronics or tank access.

Operators can quickly assess remaining capacity and make informed operational decisions during active response.

STANDARD MILWAUKEE PACKOUT™ STORAGE

A Milwaukee PACKOUT™ storage unit is mounted directly to the skid for secure, accessible storage of tools, fittings, nozzles, PPE, and adapters.

It keeps essential equipment organized without consuming truck-bed space.

ONBOARD EMERGENCY FUEL RESERVE

A side-mounted RotopaX™ fuel container provides emergency reserve fuel for the Honda-powered UHP pump system.

It supplies approximately one additional engine refill, extending operational time in remote environments without requiring loose fuel cans in the vehicle.

The unit is securely mounted to the skid frame for accessibility and protection.

BUILT AROUND THE TRUCK

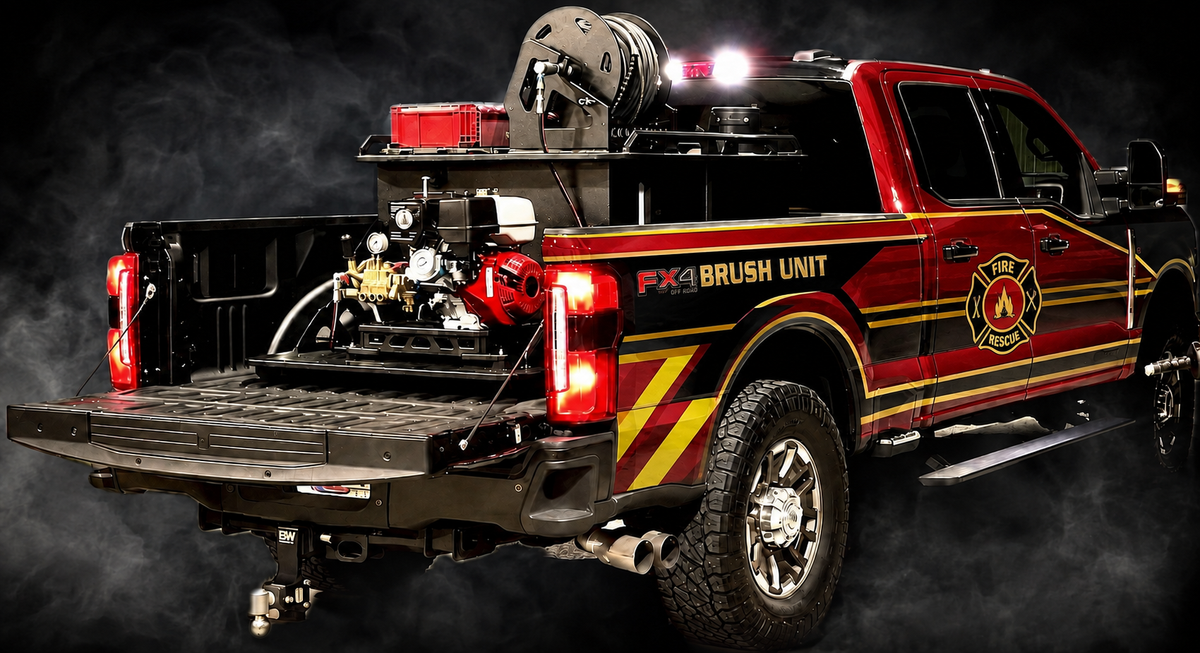

The Defender 200 is a true slide-in suppression system designed for existing pickup, brush truck, flatbed, or service-body platforms.

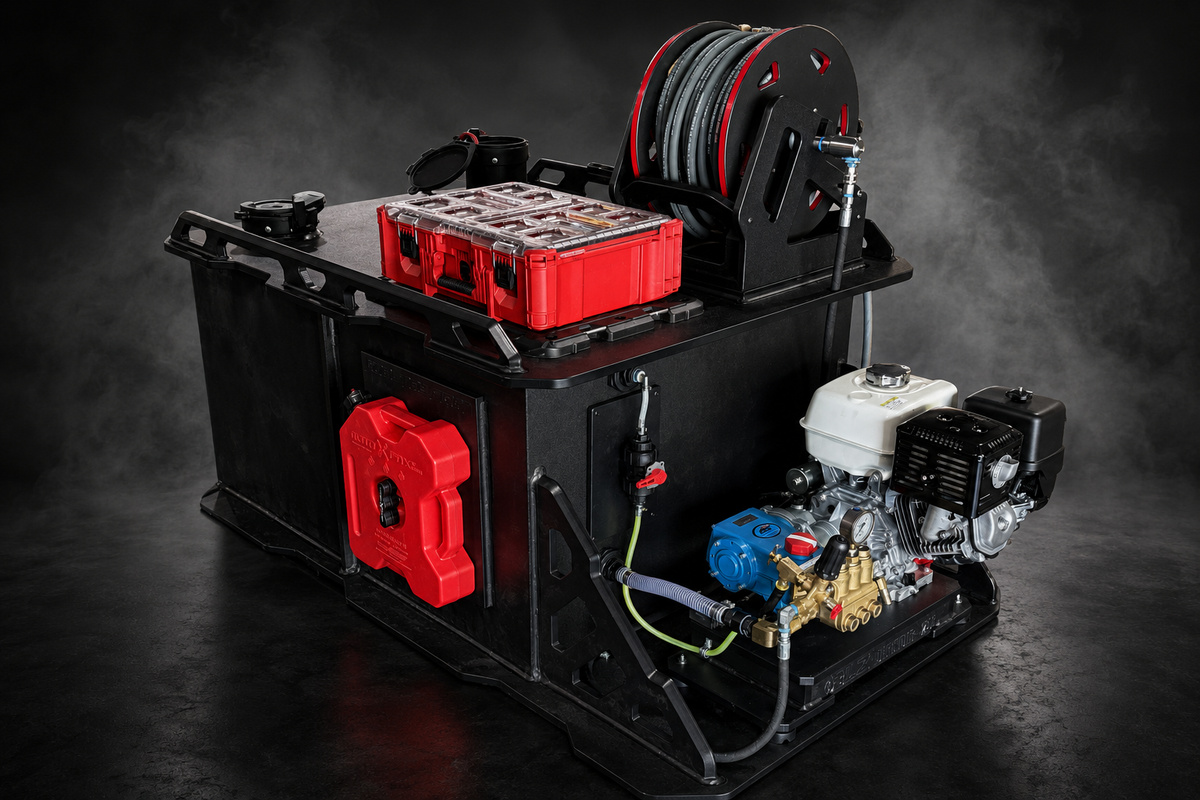

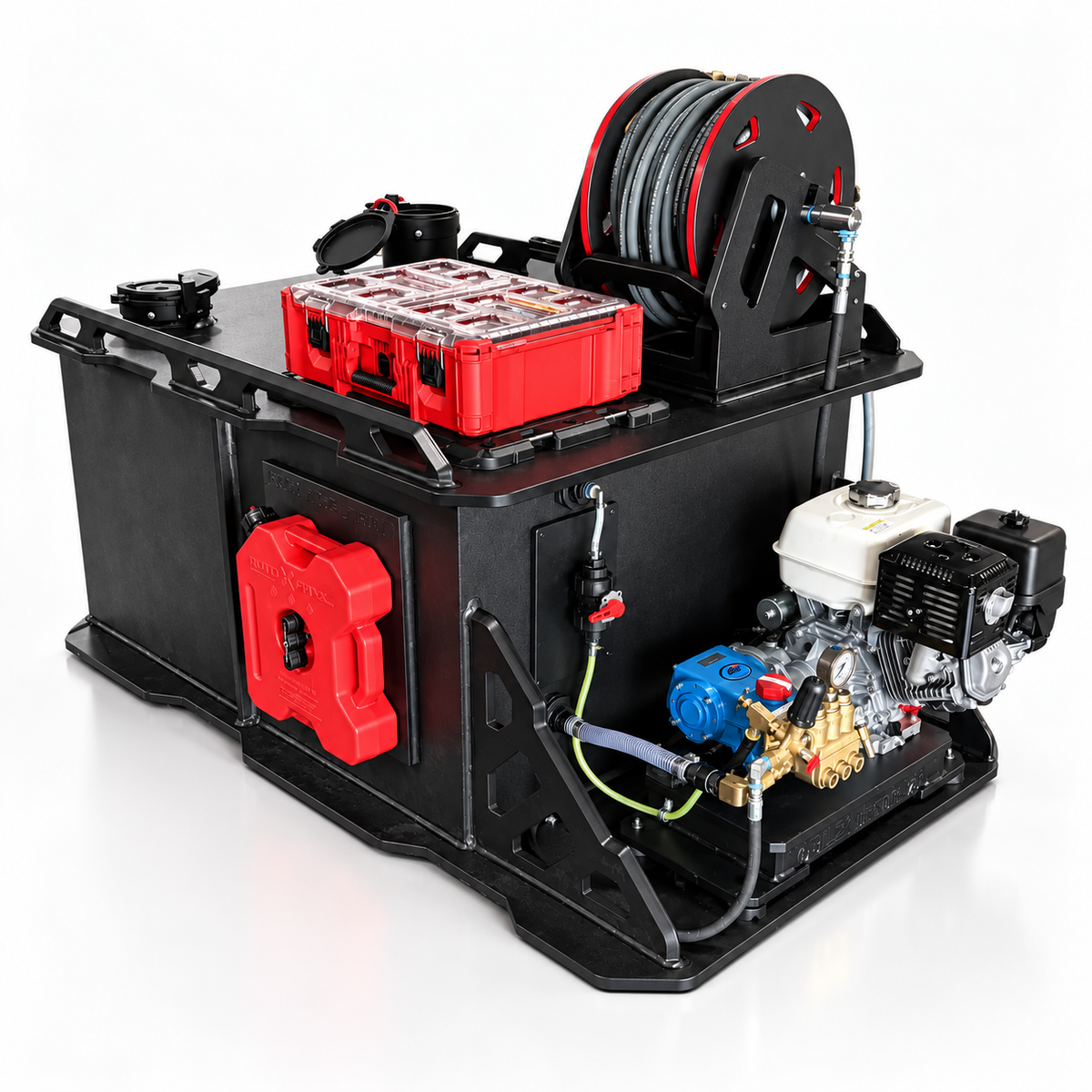

All major systems—including the tank, UHP pump, hose reel, foam system, fill tower, storage, and fuel reserve—are engineered as a single integrated package.

The result is a compact, durable system designed for field conditions, with protected components and an efficient layout for real-world use.

DEFENDER 200 KEY FEATURES

• 200-gallon baffled water capacity
• 10 GPM maximum flow
• Up to 1,200 PSI Ultra High Pressure (UHP)
• BLZ Blaze Buster™ proportional foam metering valve
• Integrated 3-gallon foam concentrate tank
• BLZ Front Line™ hose reel with 200 ft. capacity
• Stainless-steel internal reel manifold
• 6-inch rapid-fill tower with debris strainer
• Sealed, glove-friendly locking fill lid
• Integrated water-level sight glass
• Milwaukee PACKOUT™ storage system
• Side-mounted RotopaX™ emergency fuel reserve
• Slide-in skid construction
• Compatible with pickups, brush trucks, flatbeds, and utility bodies
• Designed for wildland, brush, rapid-response, and municipal use

BUILT FOR THE WAY BRUSH TRUCKS ACTUALLY WORK

The Defender 200 is engineered for field conditions, not showroom specifications.

Every system—from the in-house hose reel and foam metering system to the integrated tank, fill tower, storage, and fuel reserve—is designed for accessibility, speed, and reliability in active operations.

Water level is visible at a glance. Foam is fully controllable. Fill operations are simplified. Equipment is immediately accessible. The system is built to function under real response conditions.

Everything has a purpose.

IDEAL FOR

Brush & Wildland Fire
Initial attack, fire-line operations, spot fires, and mop-up.

Municipal Fire Departments
Adds suppression capability to existing vehicles without a full apparatus purchase.

Rural Fire Departments
Effective water delivery in areas with limited access for larger engines.

Prescribed Burning
Mobile water and foam support for burn operations and containment.

Industrial & Property Protection
On-site suppression for facilities, farms, timber operations, and remote assets.

COMPACT. POWERFUL. RELIABLE.

The Defender 200 is not a replacement for an engine.

It is a tool for where engines can’t go.

With 200 gallons onboard, 10 GPM flow, up to 1,200 PSI, 200 feet of hose, integrated foam capability, rapid-fill access, onboard storage, and emergency fuel reserve, it delivers a complete suppression system in a compact slide-in platform.

BLZ Defender 200

Built to respond. Built to work. Built for fire.

Please note : Units are shippable anywhere in the world. We will contact you to assess the shipping cost and coordinate with you before we ship the unit. You can also elect to pick it up at our shop in Alabama once its complete.
